Brand:sgm
发货:3天内
Plastic Processed:PE
Condition:New
Screw Design:Single-screw
Screw diameter (mm):90 mm
Screw Speed (rpm):60 rpm
Showroom Location:contact
Place of Origin:Shandong, China
Brand Name:SGM
Voltage:380 V
Dimension(L*W*H):18000x1600x2000 mm
Weight:6.6 KG
Warranty:1 Year
Key Selling Points:Automatic
Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After-sales Service Provided:Field installation, commissioning and training
Output (kg/h):70 - 100 kg/h
Power:90 kw

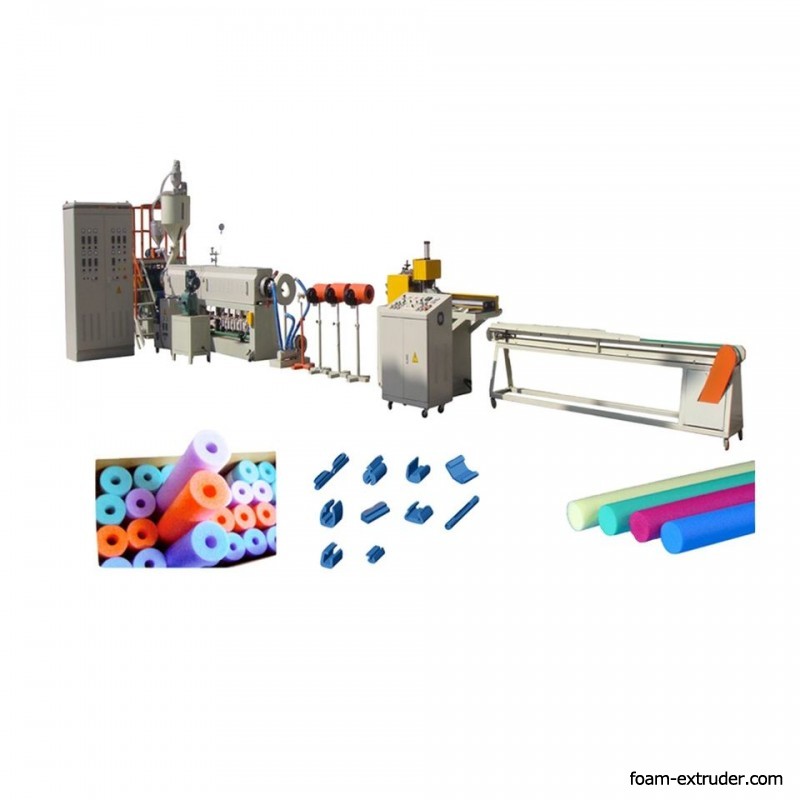

EPE foam pipe is a kind of new-type foam material and it is widely used in the jacket of air conditioner, pipeline ,heat insulation, toy guardrail ,recreation places etc. due to its high foam ratio, good elasticity and heat preservation. As a kind of new type foam filling and ornament material, EPE foam rod is widely used in spring mattress,sofa stem and edge,automobile seat,sofa backrest and top-grade clothing.It is also widely used in the filling of contracting joint in building due to its good rebound elasticity.Main parameter of Polyethylene Foam Pipe Extruder:
|
Model |
Unit |
SGEPEG-75 |
SGEPEG-90 |
SGEPEG-105 |
SGEPEG-120 |
|
L/D |
|
55:1 |
55:1 |
55:1 |
55:1 |
|
Screw speed |
r/min |
5-60 |
5-60 |
5-60 |
5-60 |
|
Foam rate |
|
20-48 |
20-48 |
20-48 |
20-48 |
|
Pipe Specification |
mm |
Ø20-40 |
Ø20-60 |
Ø20-80 |
Ø20-100 |
|
Rod specification |
|
Ø8-35 |
Ø15-50 |
Ø18-70 |
Ø20-80 |
|
Total power |
kw |
40 |
90 |
100 |
120 |
|
Overall size |
m |
16x1.3x1.7 |
18x1.6x2 |
20x1.8x2 |
22x2x2 |
|
Total weight |
T |
4.2 |
6.6 |
7.2 |
8.6 |
