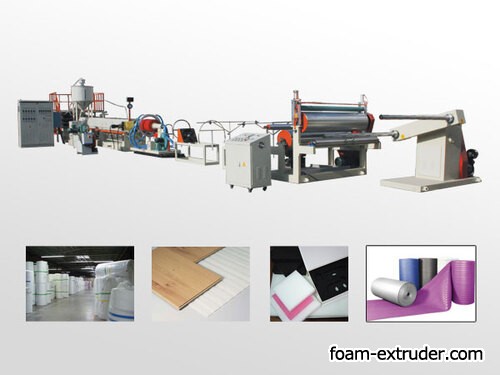

PE foam sheet production line is a single stage extruding and foaming equipment with large L/D. It takes polyethylene resin with low density as raw material. PE foam sheet production line is the most ideal physical PE forming unit in the world. It has continuous stable performance with high yield, wide range of foaming ratio, high automation and reliability.
Polyethylene raw material and talc powder etc is put into mixer in terms of ratio demanded by technique. Mixed uniformly—put into the material box on automatic feeder, fed to the material funnel on extruder---enter in feeding stage of extruder---shrinking proof agent is injected---foaming agents injected---mixed material through plasticizing is extruded from machine head—cooled and formed---planed ----drawn ---winded----packed and scaled.
PE FOAM SHEET EXTRUSION LINE PARAMETER:
|
Model |
Unit |
EPE90 |
EPE105 |
EPE120 |
EPE135 |
EPE150 |
EPE170 |
EPE200 |
|
Screw diameter/ L/D |
ф90/55:1 |
ф105/55:1 |
ф120/55:1 |
ф135/55:1 |
ф150/55:1 |
ф170/55:1 |
ф200/55:1 |
|
|
Screw speed |
r/min |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
|
Foam ratio |
? |
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
|
Width of product |
mm |
1000-1400 |
1000-1500 |
1000-2000 |
1000-2000 |
1000-2000 |
1000-2000 |
1000-2000 |
|
Thickness of product |
mm |
0.5-4.5 |
0.5-6.5 |
0.8-8 |
0.8-8 |
1-12 |
2-16 |
0.8-8 |
|
Cooling method |
水冷 |
|||||||
|
Capacity |
kg/h |
70-100 |
80-120 |
120-200 |
200-300 |
260-400 |
400-500 |
500-650 |
|
Total power (approx) |
kw |
110 |
130 |
170 |
200 |
240 |
285 |
350 |
|
Overall size (L×W×H） (approx) |
m |
22×2.3×2.2 |
23×2.3×2.2 |
25×2.3×2.2 |
28×2.3×2.2 |
30×2.3×2.2 |
32×2.3×2.2 |
38×2.3×2.2 |
|
Total weight(approx) |
t |
8.5 |
9 |
12 |
13 |
15 |
17 |
20 |
